This is a real 13‑inch heavy‑lift FPV build designed for industrial payloads, long‑range inspection, and high‑torque applications.
Below is the full parts breakdown and why this configuration works.

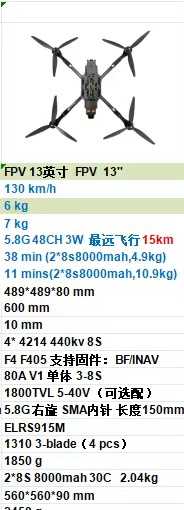

Drone Specifications
Frame: 13-inch, 600mm wheelbase, 10mm arm thickness
Motor: 4x 4214 440KV (8S)
ESC: 80A V1 single (3‑8S)
Flight Controller: F4 F405 (supports BF / INAV)
Propeller: 1310 3‑blade
VTX: 5.8G 48CH 3W (max 15km range)
Receiver: ELRS 915M
Camera: 1800TVL 5‑40V (optional upgrade)
Dry Weight: 1850g (without battery)
Takeoff Weight (empty): 2450g (without payload)
Battery: 2x 8S 8000mAh 30C (2.04kg total)
Max Speed: 130 km/h
Recommended Payload: 6 kg
Max Payload: 7 kg
Unloaded Flight Time: 38 min (2x 8S 8000mAh, 4.9kg)
Rated Payload Flight Time: 11 min (2x 8S 8000mAh, 10.9kg)
Dimensions (folded): 489x489x80 mm
Packaging Size: 560x560x90 mm
Why This Build Works for Heavy Lifting
1. Motor + Prop Matching
4214 440KV motor + 1310 3‑blade propeller provides enough torque for 6‑7kg payload without overheating. 8S voltage keeps current moderate while delivering high power.
2. Dual Battery Configuration
Two 8S 8000mAh packs in parallel extend endurance. 38 min unloaded / 11 min at 10.9kg is realistic for industrial tasks.
3. Strong Frame & Power System
10mm arm thickness + 600mm wheelbase ensures stability under heavy load. 80A ESC per motor gives headroom for sudden throttle spikes.
Best Use Cases
- Agricultural spraying (20‑25L tank equivalent)
- Industrial cargo delivery (6‑7kg goods)
- Long‑range mapping & inspection (15km VTX range)
- Heavy‑lift testing for R&D
Where to Get These Parts
Tenswall supplies the 4214 440KV motors and can support OEM customization for ESC, arm length, and battery mounts.
