Tenswall MY17 "God of War" 17-inch Reinforced Carbon Fiber FPV Drone Frame
Built for extreme long-range and heavy-lift missions, the Tenswall MY17 "God of War" is our most refined 17-inch reinforced carbon fiber quadcopter frame. Compared to the MY15 model, this version features upgraded precision engineering—including a dedicated dual-battery configuration, finer screw layout, optimized central chassis width, and enhanced rib reinforcements—delivering greater strength-to-weight ratio and stability for the largest propellers and heaviest payloads.
Premium Carbon Fiber Construction & Refined Reinforcement
Made of high-quality carbon fiber, the MY17 frame is engineered with precision upgrades:
- 10mm thick arm structure with reinforced middle section for maximum impact resistance and anti-twist performance
- Newly added 4mm support plate to distribute load evenly across the entire frame
- Layered plate design: 2mm top / 4mm middle / 3mm bottom / 4mm support plate
- Refined screw layout for tighter, more secure assembly, eliminating flex under extreme loads
- Wider yet streamlined central chassis width to balance rigidity and airflow, reducing unnecessary weight
- Enhanced rib reinforcements along the arms and body, adding structural strength without bulk

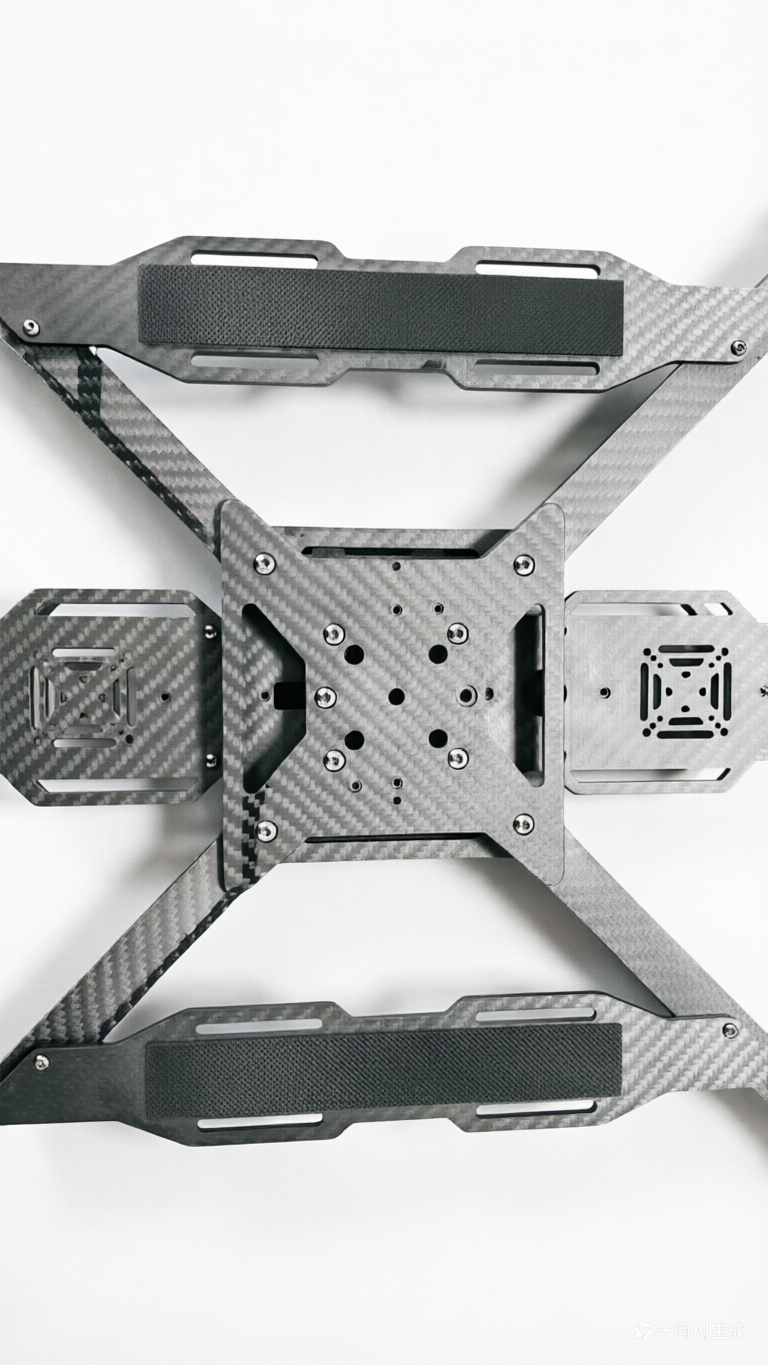

- Dual-battery optimized design: Reinforced central bay with dedicated mounting space for two batteries, supporting longer flight times and balanced power distribution for heavy payload missions
- The camera position adopts a movable and detachable design, which can be additionally installed and adjusted freely according to usage needs.
Wide Compatibility for Custom Builds
This frame supports a full range of standard components:
- Fits most 17-inch propellers and high-torque motors with 30×30mm M4 mounting
- Compatible with mainstream flight controllers using 30.5×30.5mm M3 holes
- Multi-standard VTX mounting holes fit most popular video transmitters
- 19–20mm camera mount works with most FPV cameras
Designed for Professional Use Cases
The "God of War" MY17 frame is perfect for:
- Ultra-long-distance exploration and mapping
- Heavy payload delivery missions
- High-stability cinematic and industrial-grade flight
- Large-scale quadcopter builds for commercial use

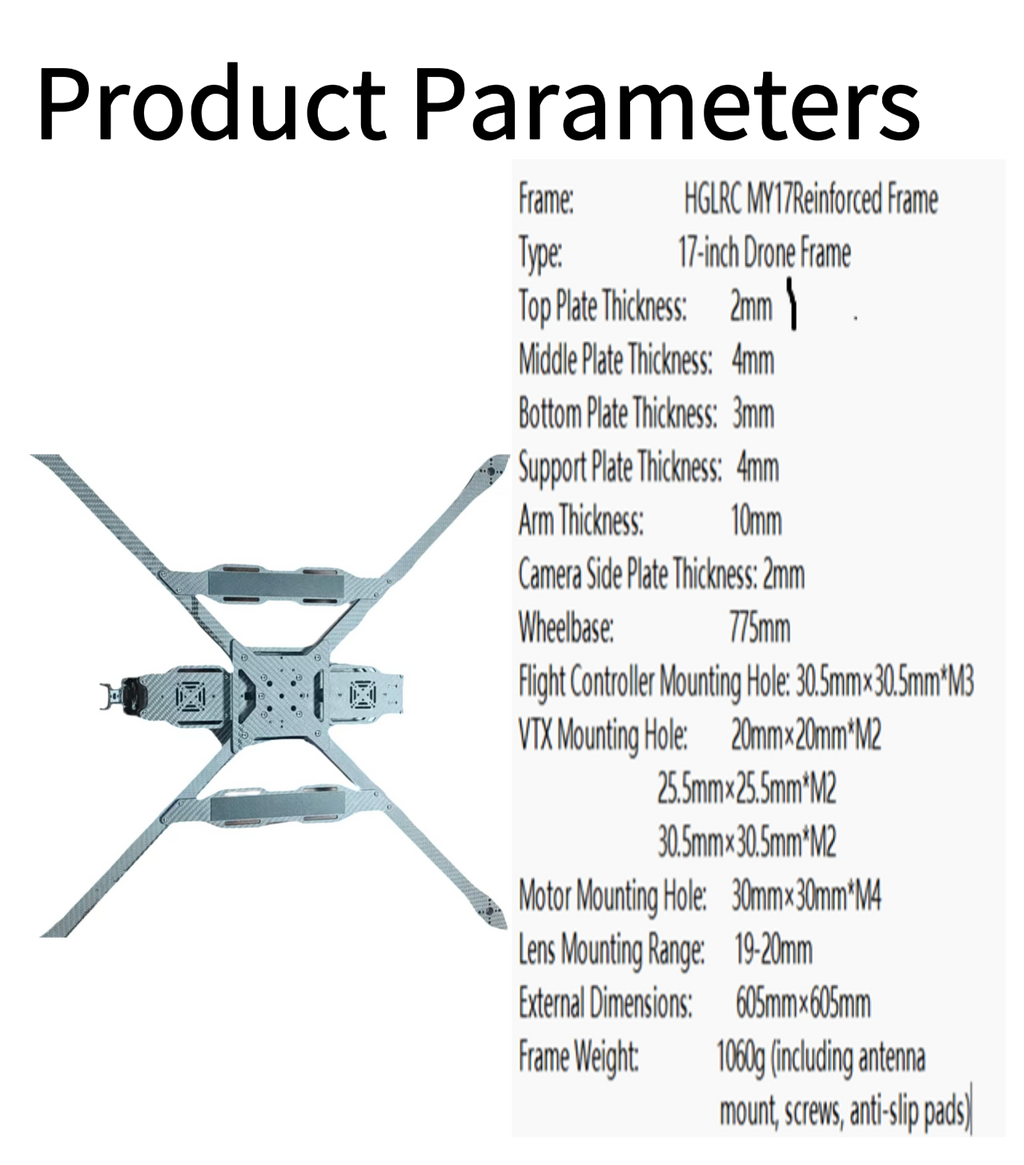

Key Specifications:
- Frame Model: MY17 "God of War" Reinforced Frame
- Size: 17-inch FPV Drone Frame
- Wheelbase: 775mm
- External Dimensions: 605mm × 605mm
- Arm Thickness: 10mm (Heavy-duty reinforced design)
- Plate Thickness: Top 2mm / Middle 4mm / Bottom 3mm / Support Plate 4mm
- Camera Side Plate Thickness: 2mm
- Frame Weight: 1060g (including antenna mount, screws, anti-slip pads)
- Motor Mounting Hole: 30mm × 30mm M4 standard
- Flight Controller Mount: 30.5mm × 30.5mm M3 standard
- VTX Mounting Holes: 20×20mm / 25.5×25.5mm / 30.5×30.5mm M2 multi-standard
- Camera Mount Range: 19–20mm
Choose Tenswall MY17 "God of War" frame for a reliable, high-performance foundation for your large-scale FPV build. Every unit is factory-tested for precision and durability, ready to handle the toughest flight conditions.
