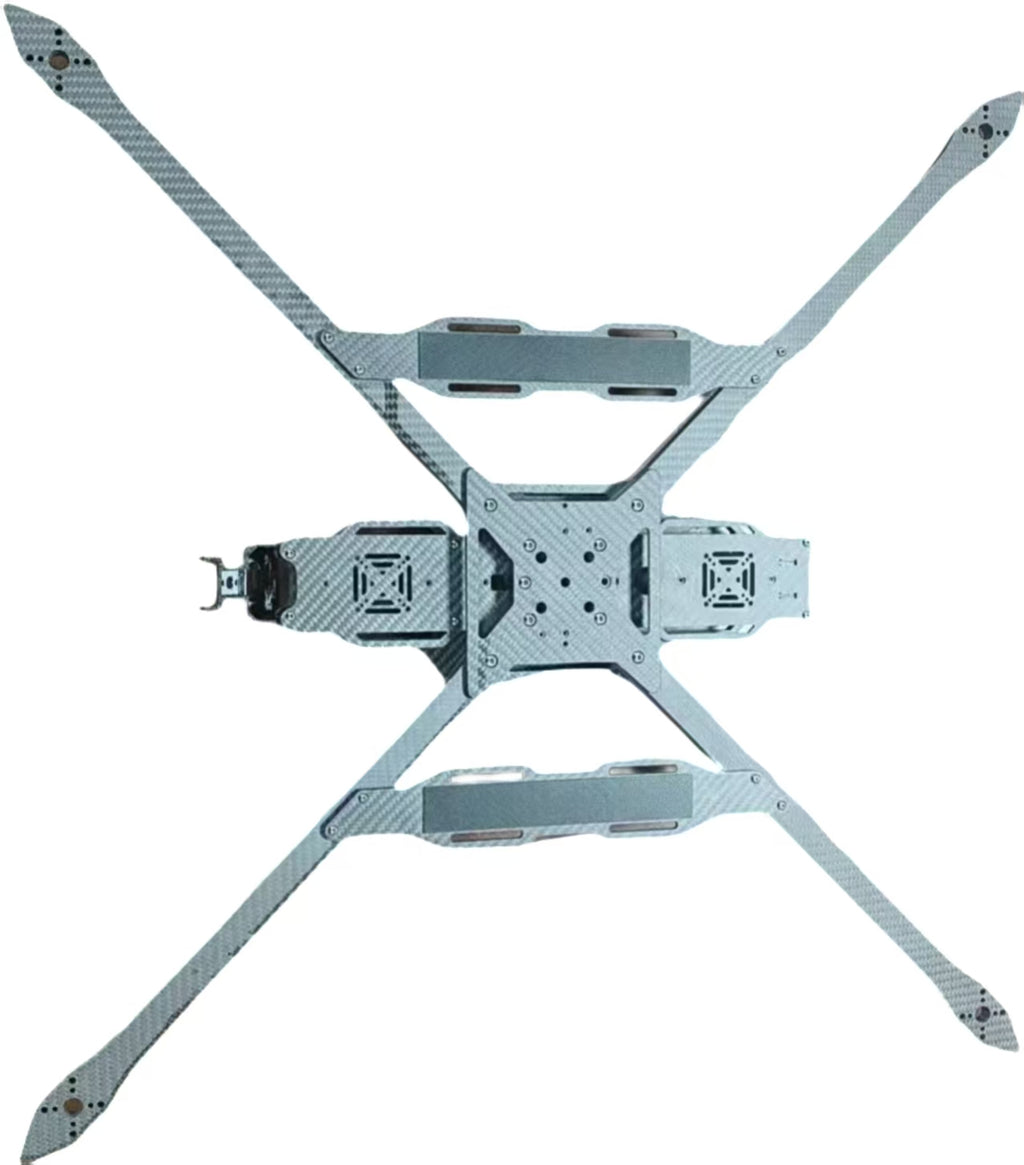

Tenswall MY18 drone frame in gray carbon fiber, with an X-shaped four-arm design and reinforced central plate.
  • Tenswall MY18 drone frame in gray carbon fiber, with an X-shaped four-arm design and reinforced central plate.
  • Tenswall MY18 FPV drone frame in gray carbon fiber with a woven pattern, reinforced arms, and layered chassis plates.

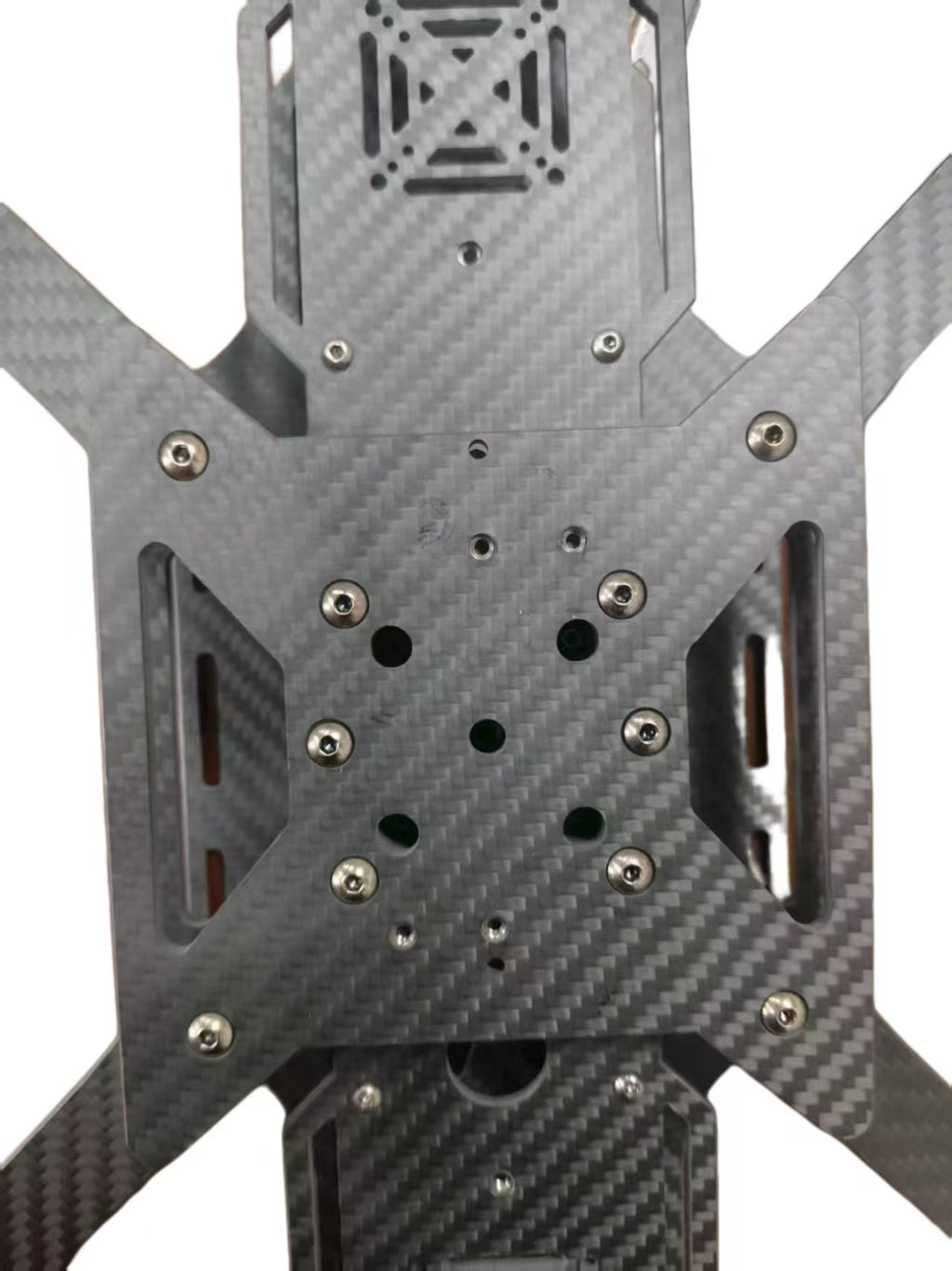

  • Tenswall MY18 FPV drone frame in gray carbon fiber, with a layered central chassis, reinforced arms, and mounting slots.
  • FPV drone frame, Tenswall MY18 in black and gray carbon fiber with a reinforced X-shaped chassis and dual battery mounts.
  • Tenswall MY18 FPV drone frame kit in silver carbon fiber, with layered chassis plates, reinforced arms, straps and hardware.
  • Tenswall MY18 drone frame in gray carbon fiber, with an X-shaped quadcopter layout, reinforced arms, and dual battery mounts
  • Drone frame comparison chart titled “Tenswall MY18,” with size, wheelbase, weight, battery setup, and camera type rows.
Tenswall MY18 "God of War" 18-inch Dual-Battery Reinforced Carbon Fiber FPV Drone Frame

产品图片：

Tenswall MY18
Tenswall MY18
Tenswall MY18
Tenswall MY18
Tenswall MY18
Tenswall MY18
Tenswall MY18

Tenswall MY18 "God of War" 18-inch Dual-Battery Reinforced Carbon Fiber FPV Drone Frame

$40.10

Tenswall MY18 "God of War" 18-inch Reinforced Carbon Fiber FPV Drone Frame
Built for extreme long-range and heavy-lift missions, the Tenswall MY18 "God of War" is our most refined 18-inch reinforced carbon fiber quadcopter frame. Compared to the MY17 model, this version features upgraded precision engineering—including a dedicated dual-battery configuration, finer screw layout, optimized central chassis width, and enhanced rib reinforcements—delivering greater strength-to-weight ratio and stability for the largest propellers and heaviest payloads.

Premium Carbon Fiber Construction & Refined Reinforcement
Made of high-quality carbon fiber, the MY18 frame is engineered with precision upgrades:
- 10mm thick arm structure with reinforced middle section for maximum impact resistance and anti-twist performance
- Newly added 4mm support plate to distribute load evenly across the entire frame
- Layered plate design: 2mm top / 4mm middle / 3mm bottom / 4mm support plate
- Refined screw layout for tighter, more secure assembly, eliminating flex under extreme loads
- Wider yet streamlined central chassis width to balance rigidity and airflow, reducing unnecessary weight
- Enhanced rib reinforcements along the arms and body, adding structural strength without bulk
- Dual-battery optimized design: Reinforced central bay with dedicated mounting space for two batteries, supporting longer flight times and balanced power distribution for heavy payload missions
- The camera position adopts a movable and detachable design, which can be additionally installed and adjusted freely according to usage needs.

Wide Compatibility for Custom Builds
This frame supports a full range of standard components:
- Fits most 18-inch propellers and high-torque motors with 30×30mm M4 mounting
- Compatible with mainstream flight controllers using 30.5×30.5mm M3 holes
- Multi-standard VTX mounting holes fit most popular video transmitters
- 19–20mm camera mount works with most FPV cameras

Designed for Professional Use Cases
The "God of War" MY18 frame is perfect for:
- Ultra-long-di

Key Specifications:
- Frame Model: MY18 "God of War" Reinforced Frame
- Size: 18-inch FPV Drone Frame
- Wheelbase: 815mm
- External Dimensions: 632mm × 632mm
- Arm Thickness: 10mm (Heavy-duty reinforced design)
- Plate Thickness: Top 2mm / Middle 4mm / Bottom 3mm / Support Plate 4mm
- Camera Side Plate Thickness: 2mm
- Frame Weight: 1090g (including antenna mount, screws, anti-slip pads)
- Motor Mounting Hole: 30mm × 30mm M4 standard
- Flight Controller Mount: 30.5mm × 30.5mm M3 standard
- VTX Mounting Holes: 20×20mm / 25.5×25.5mm / 30.5×30.5mm M2 multi-standard
- Camera Mount Range: 19–20mm

Choose Tenswall MY18 "God of War" frame for a reliable, high-performance foundation for your large-scale FPV build. Every unit is factory-tested for precision and durability, ready to handle the toughest flight conditions.

stance exploration and mapping
- Heavy payload delivery missions
- High-stability cinematic and industrial-grade flight
- Large-scale quadcopter builds for commercial use

📧 Email: tenswallyuhua93@gmail.com

💬 WhatsApp: +86 18819508815

🌐 Website: tenswall.shop

👉 Contact Us

You may also like

Frequently Asked Questions

What is the Tenswall MY18 frame designed for?
The Tenswall MY18 “God of War” is an 18-inch reinforced carbon fiber quadcopter frame. The product description lists use cases including long-range exploration and mapping, heavy-payload missions, cinematic and industrial-grade flight, and commercial large-scale builds.
How does the Tenswall MY18 support a dual-battery setup?
The frame has a reinforced central bay with dedicated mounting space for two batteries. Its dual-battery design is described as supporting longer flight times and balanced power distribution for heavy-payload missions.
Which motors, flight controllers, VTX units, and cameras fit the MY18?
The Tenswall MY18 supports motor mounting at 30×30mm M4 and flight controllers with 30.5×30.5mm M3 holes. It also has multi-standard VTX mounting holes at 20×20mm, 25.5×25.5mm, and 30.5×30.5mm, plus a 19–20mm camera mount range.
What are the Tenswall MY18 frame’s size and weight?
The frame has an 815mm wheelbase and external dimensions of 632mm × 632mm. Its listed weight is 1090g, including the antenna mount, screws, and anti-slip pads.
Can the camera position be adjusted on the Tenswall MY18?
Yes. The camera position uses a movable, detachable design that can be installed and adjusted according to your needs. The camera side plate is listed as 2mm thick.
